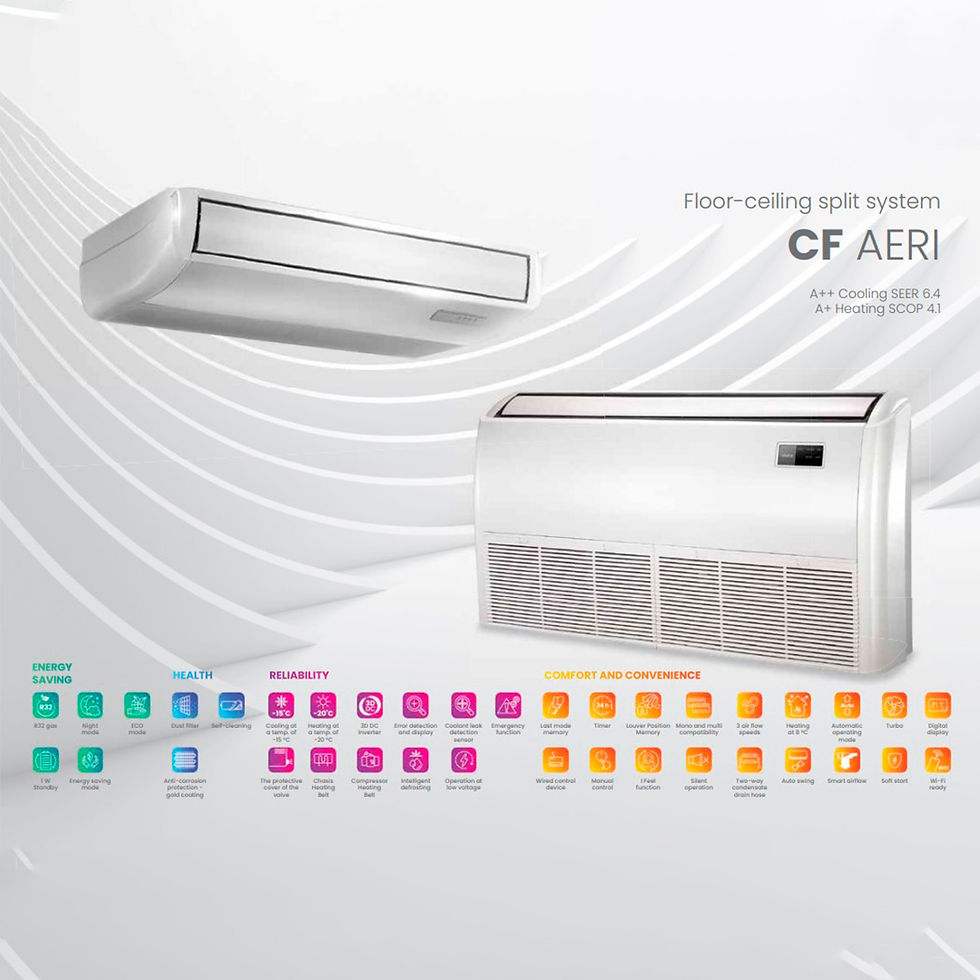

Vivax -CF AERI - FLOOR-CEILING SPLIT SYSTEM
Large air flow
The unit has the function of horizontal exhaust and automatic vertical exhaust, which ensures a more even and comfortable air flow.
Possibility of fresh air supply
Clean air from outside can be brought into the room through pipes, keeping the air in the room fresh and healthy.
A++ Cooling SEER 6.4
A+ Heating SCOP 4.1

Version
Model - CF AERI ACP-18CF50AERI+ R32
Capacity(W) - Cooling: 5280 (2710~5860) / Heating: 5570 (2420~6300)
Cooling operating range -  -15 °C ≤ T ≤ 50 °C
Heating operating range -  -20 °C ≤ T ≤ 24 °C
Packaging dimensions (mm) - 1145 x 755 x 318  (indoor unit) /915 x 370 x 615 (outdoor unit)
Power input (W) -  Cooling: 1450 (670~2027) / Heating: 1450 (670~2027)
Power Supply - ~220-240V/1/50Hz; IU and OU

Model - CF AERI ACP-24CF70AERI + R32
Capacity(W) - Cooling: 7030 (3220~7770) / Heating: 7620 (2720~8290)
Cooling operating range -  -15 °C ≤ T ≤ 50 °C
Heating operating range -  -20 °C ≤ T ≤ 24 °C
Packaging dimensions (mm) -  1145 x 755 x 318 (indoor unit) / 995 x 398 x 740(outdoor unit)
Power input (W) -  Cooling: 2300 (747~2930) / Heating: 2050 (650~2850)
Power Supply - ~220-240V/1/50Hz; IU and OU

Model - CF AERI ACP-36CF105AERI + R32
Capacity(W) - Cooling: 10550 (2730~11780) / Heating: 11720 (2810~12780)
Cooling operating range -  -15 °C ≤ T ≤ 50 °C
Heating operating range -  -20 °C ≤ T ≤ 24 °C
Packaging dimensions (mm) -  1725 x 755 x 318 (indoor unit) /1090 x 500 x 885 (outdoor unit)
Power input (W) -  Cooling: 4000 (890~4300) / Heating: 4000 (890~4300)
Power Supply - ~220-240V/1/50Hz IU, ~380-415V/3/50Hz OU

Model - CF AERI ACP-48CF140AERI + R32
Capacity(W) - Cooling: 4000 (890~4300) / Heating: 4000 (890~4300)
Cooling operating range -  -15 °C ≤ T ≤ 50 °C
Heating operating range -  -20 °C ≤ T ≤ 24 °C
Packaging dimensions (mm) -  1725 x 755 x 318 (indoor unit) /1095 x 495 x 1480 (outdoor unit)
Power input (W) -  Cooling: 1095 x 495 x 1480 / Heating: 5100 (1000~6050)
Power Supply - ~220-240V/1/50Hz IU, ~380-415V/3/50Hz OU

Model - CF AERI ACP-55CF160AERI + R32
Capacity(W) - Cooling: 15830 (4100~16710) / Heating: 15830 (4100~16710)
Cooling operating range -  -15 °C ≤ T ≤ 50 °C
Heating operating range -  -20 °C ≤ T ≤ 24 °C
Packaging dimensions (mm) -  1725 x 755 x 318 (indoor unit) / 1095 x 495 x 1480(outdoor unit)
Power input (W) -  Cooling: 1095 x 495 x 1480 / Heating: 6050 (1050~7100)
Power Supply - ~220-240V/1/50Hz IU, ~380-415V/3/50Hz OU
