Vivax -CC AERI - CASSETTE SPLIT SYSTEM
360° EXHAUST
The 4-way ceiling exhaust allows 360 ° air flow. Each louver can be operated separately. When the air conditioner is restarted, the louvers return to the previously used position so that the usual preferred settings can be enjoyed.
NEW PANEL DESIGN
The new panel design and Indoor unit fan ensure optimized aerodynamic performance and improved noise reduction to whisper volume levels.
A++ Cooling SEER 6.6
A+ Heating SCOP 4.1

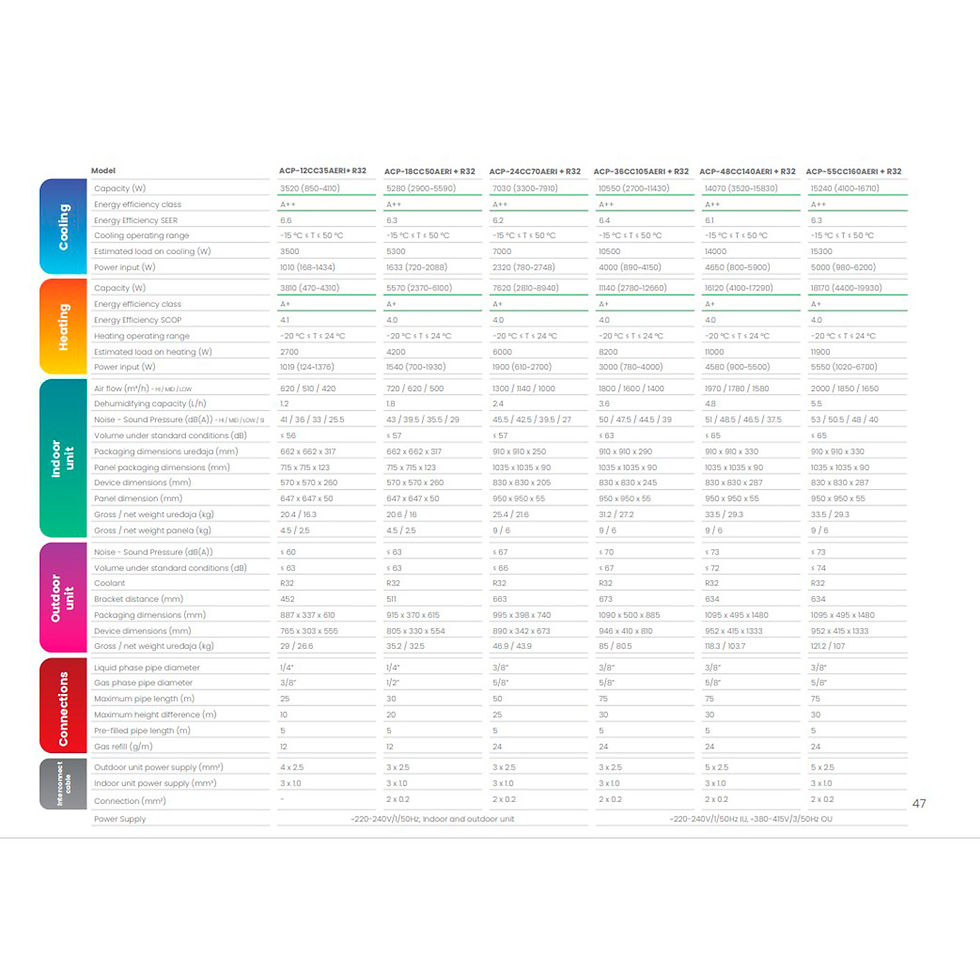

Version

Model - CCAERI ACP-12CC35AERI+ R32
Capacity(W) - Cooling: 3520 (850~4110) / Heating: 3810 (470~4310)
Cooling operating range -  -15 °C ≤ T ≤ 50 °C
Heating operating range -  -20 °C ≤ T ≤ 24 °C
Packaging s uređaja (mm) 662 x 662 x 317 (indoor unit) / 887 x 337 x 610(outdoor unit)
Panel packaging dimensions (mm) 715 x 715 x 123  (indoor unit)
Device dimensions (mm) 570 x 570 x 260 (indoor unit)
Panel dimension (mm) 647 x 647 x 50 (indoor unit)
Power input (W) -  Cooling: 1010 (168~1434) / Heating: 1010 (168~1434)
Power Supply - ~220-240V/1/50Hz; Indoor and outdoor unit

Model - CCAERI ACP-18CC50AERI + R32
Capacity(W) - Cooling: 5280 (2900~5590) / Heating: 5570 (2370~6100)
Cooling operating range -  -15 °C ≤ T ≤ 50 °C
Heating operating range -  -20 °C ≤ T ≤ 24 °C
Packaging s uređaja (mm) 662 x 662 x 317 (indoor unit) / 915 x 370 x 615(outdoor unit)
Panel packaging dimensions (mm) 715 x 715 x 123 (indoor unit)
Device dimensions (mm) 570 x 570 x 260 (indoor unit)
Panel dimension (mm) 570 x 570 x 260 (indoor unit)
Power input (W) -  Cooling: 1633 (720~2088) / Heating: 1540 (700~1930)
Power Supply - ~220-240V/1/50Hz; Indoor and outdoor unit

Model - CCAERI ACP-24CC70AERI + R32
Capacity(W) - Cooling: 7030 (3300~7910) / Heating: 7620 (2810~8940)
Cooling operating range -  -15 °C ≤ T ≤ 50 °C
Heating operating range -  -20 °C ≤ T ≤ 24 °C
Packaging s uređaja (mm) 910 x 910 x 250 (indoor unit) / 995 x 398 x 740 (outdoor unit)
Panel packaging dimensions (mm) 1035 x 1035 x 90  (indoor unit)
Device dimensions (mm) 830 x 830 x 205 (indoor unit)
Panel dimension (mm) 950 x 950 x 55 (indoor unit)
Power input (W) -  Cooling: 2320 (780~2748) / Heating: 2320 (780~2748)
Power Supply - ~220-240V/1/50Hz; Indoor and outdoor unit

Model - CCAERI ACP-36CC105AERI + R32
Capacity(W) - Cooling: 10550 (2700~11430) / Heating: 11140 (2780~12660)
Cooling operating range -  -15 °C ≤ T ≤ 50 °C
Heating operating range -  -20 °C ≤ T ≤ 24 °C
Packaging s uređaja (mm) 910 x 910 x 290 (indoor unit) / 1090 x 500 x 885 (outdoor unit)
Panel packaging dimensions (mm) 1035 x 1035 x 90  (indoor unit)
Device dimensions (mm) 830 x 830 x 245 (indoor unit)
Panel dimension (mm) 950 x 950 x 55 (indoor unit)
Power input (W) -  Cooling: 4000 (890~4150) / Heating: 3000 (780~4000)
Power Supply - ~220-240V/1/50Hz IU, ~380-415V/3/50Hz OU

Model - CCAERI ACP-48CC140AERI + R32
Capacity(W) - Cooling: 14070 (3520~15830) / Heating: 16120 (4100~17290)
Cooling operating range -  -15 °C ≤ T ≤ 50 °C
Heating operating range -  -20 °C ≤ T ≤ 24 °C
Packaging s uređaja (mm) 910 x 910 x 330 (indoor unit) / 1095 x 495 x 1480 (outdoor unit)
Panel packaging dimensions (mm) 1035 x 1035 x 90  (indoor unit)
Device dimensions (mm) 830 x 830 x 287 (indoor unit)
Panel dimension (mm) 950 x 950 x 55 (indoor unit)
Power input (W) -  Cooling: 4650 (800~5900) / Heating: 4580 (900~5500)
Power Supply - ~220-240V/1/50Hz IU, ~380-415V/3/50Hz OU

Model - CCAERI ACP-55CC160AERI + R32
Capacity(W) - Cooling: 15240 (4100~16710)  / Heating: 18170 (4400~19930)
Cooling operating range -  -15 °C ≤ T ≤ 50 °C
Heating operating range -  -20 °C ≤ T ≤ 24 °C
Packaging s uređaja (mm) 910 x 910 x 330 (indoor unit) /1095 x 495 x 1480 (outdoor unit)
Panel packaging dimensions (mm) 1035 x 1035 x 90  (indoor unit)
Device dimensions (mm) 830 x 830 x 287 (indoor unit)
Panel dimension (mm) 950 x 950 x 55 (indoor unit)
Power input (W) -  Cooling: 5000 (980~6200) / Heating: 5550 (1020~6700)
Power Supply - ~220-240V/1/50Hz IU, ~380-415V/3/50Hz OU
